BenchPro’s founder began work toward a series of 21 static control patent ideas relating to production furniture back in the early 1970’s. His workbench designs incorporate many related exclusive features:
Exclusive LisStat™ laminate resistance levels are always within the low side of ANSI-BIFMA standards.
BenchPro ESD exclusive work bench designs include:- LisStat™ laminate.
- Full aluminum bottom sheet.
- One 10’, 106 grounding wire and two screws positioned on the back legs.
- One wire to “daisy-chain” rows of benches together electrically.

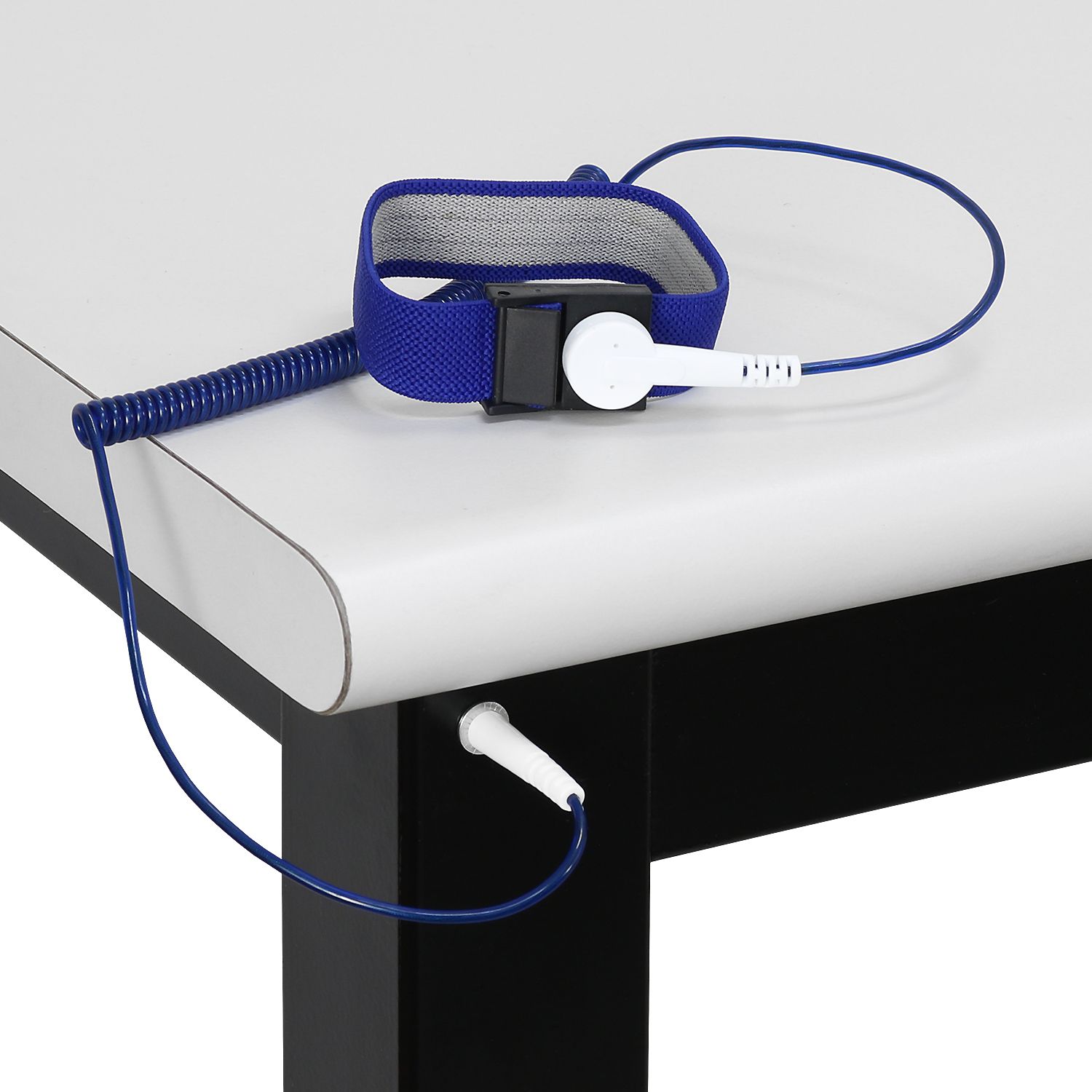

- Two wrist strap jacks on the top of the front legs.
- One compliant wrist strap.
- All metal parts are painted with ESD powder paint.
- BenchPro’s Unconditional 25-year warranty.
How it works: Exclusive LisStat™ laminate is applied to the top, sides, and is wrapped around the front edge where it extends under the top, and is secured underneath by under lapping the frame members. An exclusive full size sheet of aluminum in applied to the underside, and makes solid contact with all edge laminate, the rolled under front edge and the work bench frame. This makes the entire workbench dissipative at every point.
