1 Lever Height:
- Nylon Base: 19" to 27".
- Chrome Base: 20" to 28"
- Aluminum Base: 18" to 26".
3 Lever Height:
- Nylon Base: 20" to 28".
- Chrome Base: 22" to 30"
- Aluminum Base: 20" to 28".
- Seat: 19" Wide, 17" Deep. Waterfall Front. Fully Ergonomic.
- Back: 13.5" High. Comfortable Lumbar Support.
- Base: 5 Leg.
- Casters: 60mm.
- Weight Capacity: 450#.
- Footring Diameter: 18".
Foam Construction: 2.5” Thick Quadruple Density urethane foam. The top layer is Memory Foam for exceptional comfort, under that is soft foam maximize comfort for lighter weight people, then Medium Density followed by extra firm foam for the heavier people.
Fabrics: Marquesa Lana Polyolefin Fabrics.
Fabric Durability: Estimated 25 years use.
Seat Pan: Seven Ply Individually Formed Hardwood Plywood.
Structural Standards: Meets All Requirements of ANSI/BIFMA, DIN and GSA.
Fire Standard: Meets California Fire Standard 117.
Cleaning: Mild Soap and Water.
Industrial Grade Chair Comparisons
| Description | *BenchPro | *Gibo Kodama | *BEVCO | *Biofit | Indl Seating | ULINE |
| TALL CHAIRS | ||||||
| Polyurethane | $170 | $374 (alum base) | $300 | $411 | $213 | $215 |
| Polyurethane ESD | - | - | $514 | - | - | $455 |
| Fabric | $215 | $395 | $330 | $450 | $229 | $305 |
| Fabric ESD | $235 | $515 (Short chair, alum base) | $420 | $609 | $237 | $420 |
| Vinyl | $220 | $404 (Short chair, alum base) | - | - | $235 | $365 |
| Vinyl ESD | $263 | $550 (alum base) | $670 | - | $282 | - |
| Cleanroom | $261 | - | $548 | $518 | $279 | - |
- Meets and Exceeds All ANSI/BIFMA Standards.
- Independantly Tested to Stability Standard
- Unconditional 10 Year Warranty.
- Stainless Steel Chair Controls. (Exclusive). View Video.
- 3 Layer Foam Seat Cushions to Extended Comfortable Life.
- Newest Ergonomic Designs for “All Day” Comfort.
Electrostatic discharge (ESD) control test in accordance with the policy established in the ANSI/ESD STM12.1-2019 standard, applied to the Bench Depot Industrial Cabinet.
The objective is to verify the performance and ground continuity of the cabinet configurations:
- Worksurfaces (Top).
- Drawer components (Handles & Interior).
- Grounding points (Chassis/Casters).
Applying the following test points:
- ESD S4.1: Protection of ESD susceptible items – Worksurfaces – Resistance characterization.
- ESD STM4.2: Protection of ESD susceptible items – Worksurfaces – Charge dissipation characteristics.
SCOPE AND APPROACH
The tests were applied to a Heavy Duty Cabinet with conductive paint and metal components, in compliance with standards ESD S4.1 and ESD STM4.2, focusing on contact points and discharge paths between the worksurface, drawers, and ground point.TOOLS USED
To perform accurate measurements, we utilized the DESCO LCD MEGOHMMETER – Item A50070.
This tool allows us to measure surface resistance and ensure compliance with the recommended limit of < 1 × 10⁹ ohms for ESD protected areas.
Note: The ESD STM4.2 test was applied at 100 volts.
PROCESS & RESULTS: Worksurface
The tool was placed on the Cabinet Top Worksurface. The unit demonstrated excellent conductivity within the dissipative range.
| Test Point | Reading (Ω) | Limit | Status |
|---|---|---|---|
| Worksurface Top | 1.1 × 10⁶ | < 1×10⁹ | PASS |

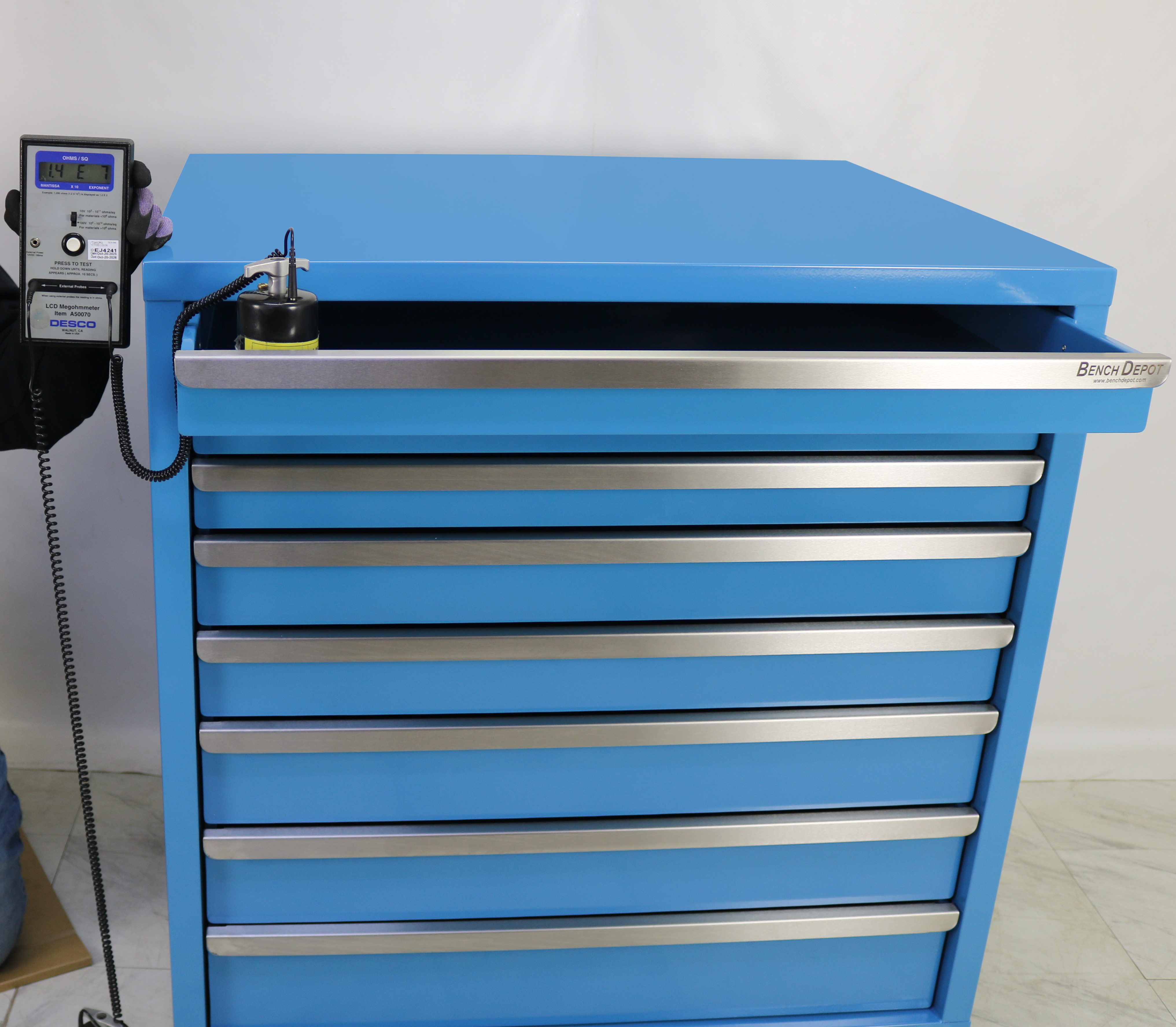

PROCESS & RESULTS: Drawer Handles
Conductivity tests were performed on drawer handles at different levels to ensure ground path continuity throughout the vertical structure.
| Test Point | Reading (Ω) | Limit |
|---|---|---|
| Top Drawer Handle | 1.4 × 10⁷ | < 1×10⁹ |
| Middle Drawer Handle | 8.6 × 10⁷ | < 1×10⁹ |
| Bottom Drawer Handle | 5.8 × 10⁷ | < 1×10⁹ |

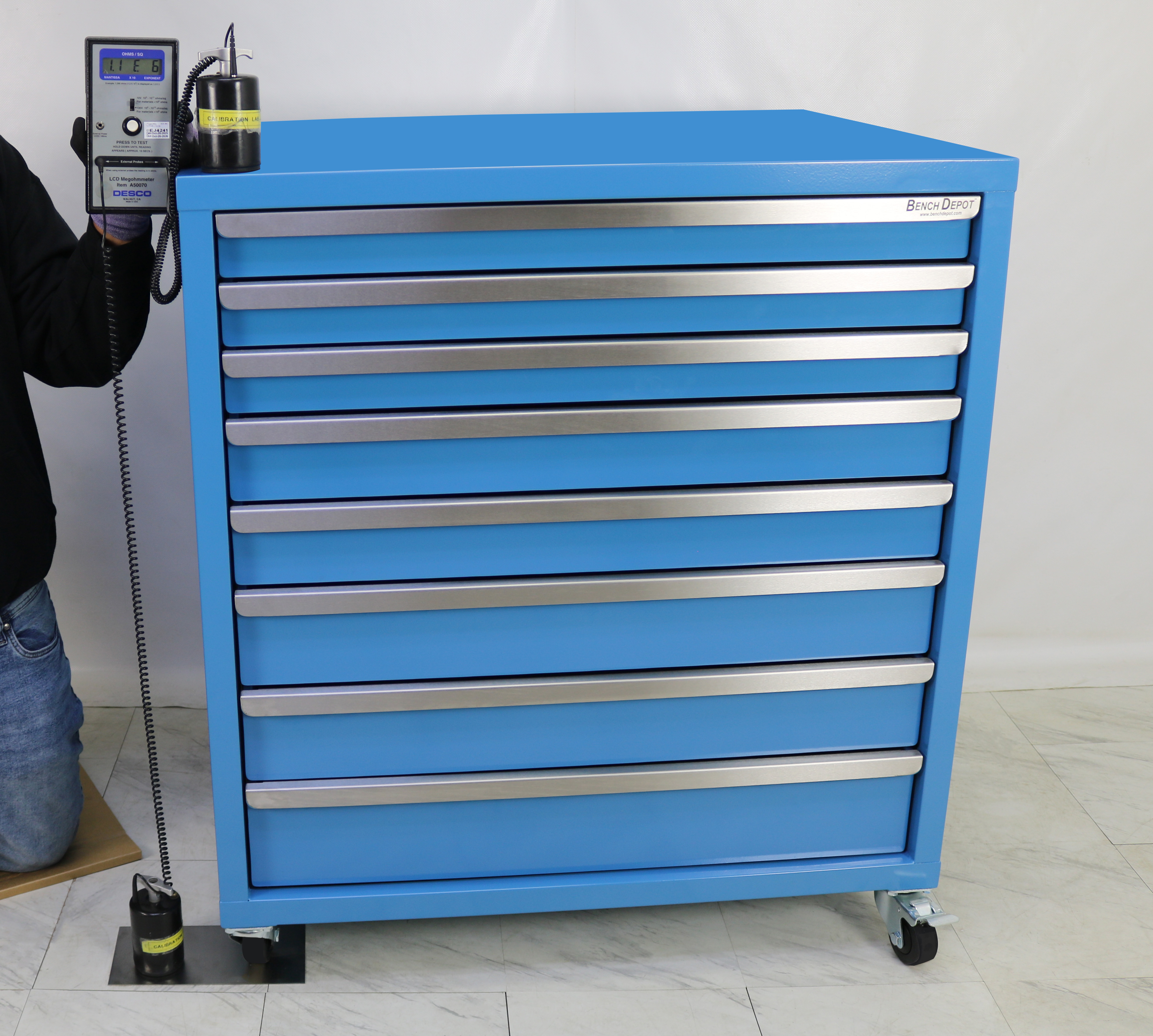

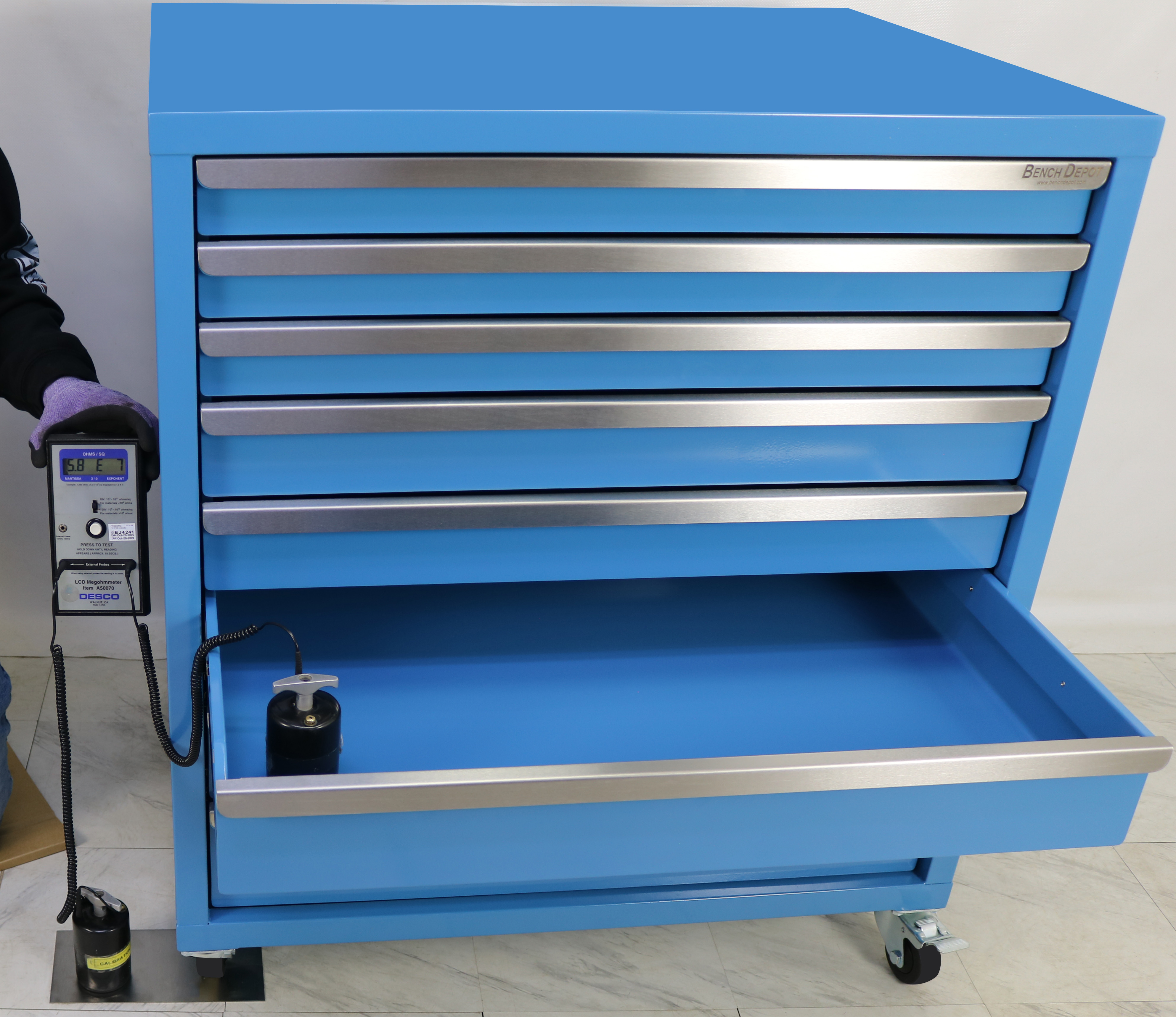

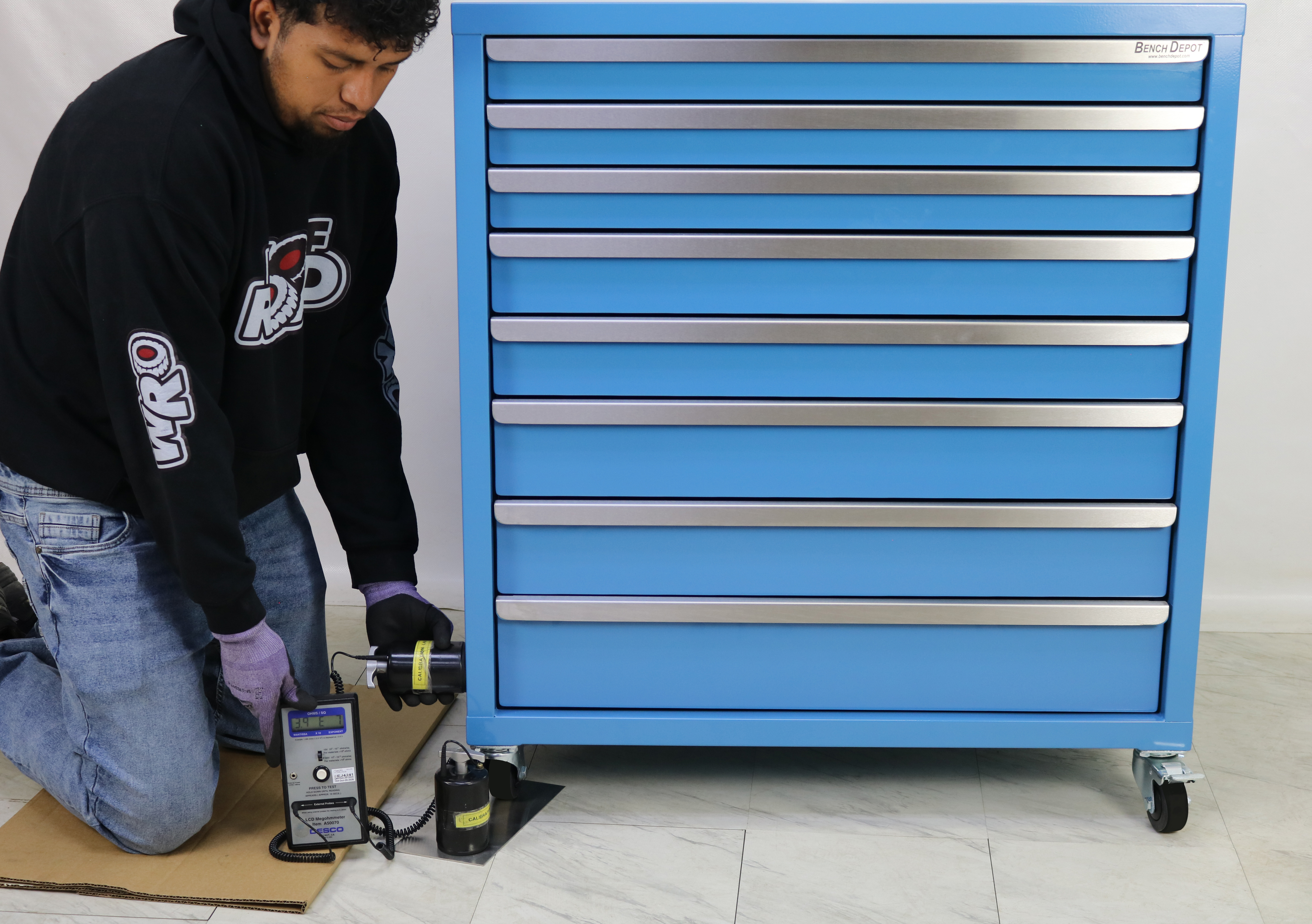

PROCESS & RESULTS: Interior & Ground
The tool was placed inside the drawer and on the chassis/caster to verify the final discharge path to ground.
| Test Point | Reading (Ω) | Limit |
|---|---|---|
| Drawer Interior | 1.9 × 10⁷ | < 1×10⁹ |
| Caster/Chassis | 3.9 × 10⁷ | < 1×10⁹ |
Observations:
- For standards that include multiple resistance test methods, these limits apply to all methods.
- The ANSI/ESD STM4.2 tests were applied at 100 volts.
CONCLUSION
The Bench Depot Cabinet COMPLIES with the resistance limits established by standards ANSI/ESD STM12.1-2019, ESD S4.1 and ESD STM4.2.
All measured surfaces (Worksurface, Handles, Interior, and Chassis) maintain a resistance within the safe range (< 1×10⁹ Ω).
Therefore, this model is suitable for use in ESD work areas (Electrostatic Protected Areas), maintaining stable dissipative behavior.
BenchPro™ offers a 10-year unconditional warranty on our seating . . . .because we can.
We make sure the chairs are well built, and the fabrics and foams we use will last longer than 10-years of heavy use.
Example: Seat plates (under the seat cushion) are made for sale in at least 10 countries. We have tested each one of these and found them too weak to pass BIFMA and our standards, so we made all the tooling to produce the parts, and make our own. We sell them to a few other quality chair manufacturers.
While other brands have pressed together and crimped connections, ours use better methods and are assembled by welding. These photos show 24 mig spot welds and 2 circular mig welds. Then we powder paint them.
We carry liability insurance. It has never been used!
Seating Products Warranty- Frames are warranted to stay as strong as when they were new for 10 years. - Upholstery, including the foam, fabric and molded wood understructure must remain attractive and in proper working condition for five years. (The exception shall be damage due to customer impacts, burns, stains, cuts, etc.) - Our bumper-grade chrome will not delaminate, fade, rust or become unattractive for 10 - years. - Static Control (ESD) properties of our seating must remain within the nationally accepted standards of ANSI/ESDA S20.20, GSA and The ESD Association established and in place at the time of sale, for 10 - years. - Clean room seating must maintain the standards of a Class 100 for 10 - years. Exceptions: Our seating warranty is extended to the original purchaser and is prorated when the chairs are used in multiple-shift operations. Service: Call BenchPro™ at 888-700-9888 or email info@benchpro.com. Customers only have the obligation to report the problem and BenchPro™ will take care of the rest. BenchPro™ will either refund the entire purchase price including freight (if by our freight carrier) and tax (if any) or replace the product or component that is defective at our discretion. Due Diligence: Please, if a chair is found to be defective in a way that could lead to an accident, take it out of service and tag it as dangerous until replacements or replacement parts are received and assembled. Destruction: Dangerous products should not be put into open waste disposal system until they have been made unusable, so no third party can claim them and be injured. Product Returns: 1. No return is ever required. (We may ask for an electronic photo in cases where we have not seen the problem before). 2. If the product is purchased but not needed, and returned with freight prepaid, and in new condition with original packing materials, we charge a restocking fee. We also charge a restocking fee for products ordered but cancelled after the product is built. (This is to cover our repackaging, reselling and handling). Restocking fee schedule:
A. Lincoln and Washington Series in standard sizes and colors will be charged 15%.
B. Custom design and non-catalogue items are non-returnable.
C. No product shall be returned after 60 days. From the lawyers: In no case shall BenchPro™, its distributors, employees, related divisions, and other entities be responsible for any direct, consequential or indirect damage caused by the use, inability to use, or incorrect use of our products. Our liability is limited to replacement of product or a full refund.
|
||
 |
Add Fixed, Adjustable or ESD Arms.
|
|---|---|
 |
Add Braking, Urethane or Glides.
|
 |
Keep Small Parts Close to You.
|
 |
Convenient Bottle Handling.
|
 |
Accommodates any Tool.
|
