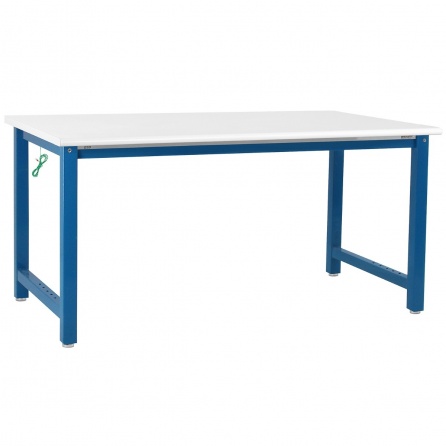

• Meet ANSI, BIFMA, DIN and GSA Structural Standards.
• Frame: 6,600# Capacity, 16-gauge Strong Cold Rolled Steel.
• Frame: 15,000# Capacity, 14-gauge Strong Cold Rolled Steel.
• One Bolt Per Leg Assembly.
• Factory Assembly Available.
• Pass ESD Association Standards.
• 1.2" Thick Top.
• Cleanroom Class 100
• Available 24”, 30”, 36”, 48” Wide or Custom.

Height: Order these benches in any desired height. View accessories page for adjustable legs.

MAINTENANCE: Always clean ESD bench tops with good ammoniated detergent, rinsing with clear water. Do not use wax or anything that can leave a coating on the laminate since these may adversely affect or modify its electrical properties.

Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not apply wax or other coatings as they may modify or reduce the dissipative properties of the laminate.

! Although our laminated tops and shelves are very water resistant, they are not recommended for use where running water is present or where constant water spills are possible. These type of wet applications require either stainless steel or resin top tables.

BenchPro™ uses LisStat™ ESD laminate. This laminate covers all sides and the top of the work surface.

This LisStat™ laminate is formed around the front edge of the work surface and 3" under the front edge.



Each fastener sits tightly against the raw steel inside the tubes and pierces the ESD laminate in multiple places.



The underside of the top is bonded to a sheet of conductive aluminum.
The ESD LisStat™ laminate is bonder over the aluminum, making the entire top and bottom dissipative from every point.
The tubular steel frame is factory attached to the top by a series of screws.



What is included with an ESD system?

Special Top Features:

1. We Use LisStat™ ESD Laminate: Uses a design which controls the static dissipation rate to meet all ANSI/BIFMA and Federal GSA standards. This laminate carry the static charge across a layer of carbon which is buried just below the surface color layer.

Some of our competitors still use brands of ESD laminate which are made conductive by dipping conventional laminate sheets into a chemical bath, then dry the sheet.

These sheets come from the laminate dipper with a label which, to paraphrase it, reads Do not clean with any products containing water, ammonia, chlorine, or soap. We have replaced hundreds of competitors tops which have lost their ESD properties over time, even though they followed all the manufacturer instructions.

2. We use ESD laminate on the top and all four edges. As surprising as it sounds most other companies either use a non-dissipative rubber strip or use nonconductive laminate on the edges. If you already have a competitors ESD bench, you can spot this by checking to see if the laminate looks identical in color, thickness and texture. If it looks different, check the surface resistivity. It won't be the same.

3. Aluminum underside: We are the only bench manufacturer to use an aluminum sheet to seal the underside of our tops and to assure conductivity. While other makers either leave the core particleboard uncovered on the bottom, paint the bottom or apply a brown paper sheet, we use the only material which completely seals out moisture, and which is 100% conductive. This is important too, as this moisture is the only reason tops warp, and leaving a nonconductive bottom sheet can cause problems in sensitive work areas.

4. Multiple grounding systems: While other brands of benches tout a very special bolt used to ground the surface of the laminate to their grounding system wires, we have eliminated this bolt (And the wires). Because all BenchPro™ bench tops are designed with a full 180 degree laminate radius on the front edge, and because the front laminate wraps under the top of the frame, we simply placed the frame where the fastening screws go through the laminate. This directs the static charge directly into the frame, which is in turn grounded by two conductors we provide for earth grounding purposes. All ESD shelves have the same grounding system.

The two front legs have banana jacks on their front edges to accept wrist strap connectors. The back of the frame has two mounting lugs to attach the two grounding wires which are included with the system. You will find this double system in evidence on every ESD bench and accessory we make.

BenchPro™ ESD work benches are not connected electrically to the floor. We use insulated floor glides so static charges will pass only through the grounding system provided, and so inadvertent charges on the floor can not pass up to the work surface and operator.

The unique characteristics of LisStat™ Static Dissipative Laminate make it ideally suited for a variety of sensitive electronic production applications.

LisStat™ Static Dissipative Laminate Sheets are designed for permanent lamination to work station surfaces.

LisStat™ meets and surpasses all standards for electrical dissipation as they apply to static control, even at low humidity levels. These standards include ANSI/BIFMA, ESDI, GSA and many others.

LisStat™ Static Dissipative Laminate Sheets are designed for permanent lamination to work station surfaces.

All BenchPro™ ESD benches are only available with ergonomic contoured front edges. This way, the ESD laminate conducts the static charges all the way to the steel frame. The steel frame has two wrist strap jacks mounted on the top of the two front legs for convenience. BenchPro™ also provides one grounding wire to take the static from the frame to either an adjoining bench or to ground.

To guarantee a static clear work area, all BenchPro™ ESD bench top have their edges laminated with the same static control laminates as used on the top, while the underside of the tops have a laminated solid aluminum sheet.

Wikipedia ESD Information

What is the best work surface height for me?

You can order your benches at any work surface height without incurring additional cost, or select the lowest height you believe useful and add either our optional adjustable legs, our electric lift system or our crank-up system.

We have seen orders for almost every work surface height. Some Customers want to sit down and work, others want to stand. Here are some thoughts that may be of assistance:

1. Desks are 30" high.

2. Desk chairs usually have a seat cushion height adjustability range of around 17" to 22".

3. Work surfaces should never be more than 9" higher than the top of the chair range. Conclusion: If you need a work surface higher than 31", you will need a taller chair.

4. Taller chairs usually have a foot ring and a wider base. (Adjustable foot rings are critical as employees come in all sizes too.)

5. Our taller chairs have a seat cushion height adjustability range of 22" to 32". (Some brands have ranges of only 5" or 8".)

6. We do not recommend chairs be used at benches with work surfaces of 37" and higher, as some employees will attempt to "climb" the chair, and could be injured when the chair rolls or tips.
